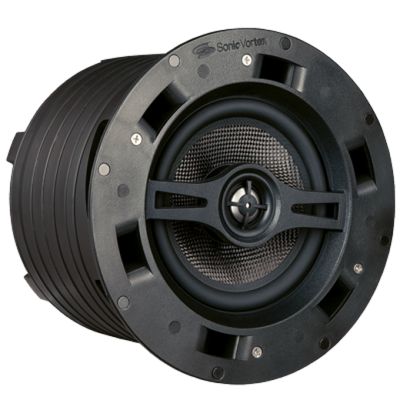

Speaker Type: Angled In-Ceiling 2-Way
Woofer: 6.5″ Carbon Fiber
Tweeter: 1″ Titanium Dome
Frequency: 40 Hz — 25 kHz
Sensitivity: 89 dB
Impedance: 8 Ω
Depth: 6.8″ (172 mm)
Speaker Weight: 6.97 lbs (3.16 kg)
Cutout: 8.4″ (214 mm)
Diameter: 9.4″ (239 mm)
Power Handling: 5 —120 W

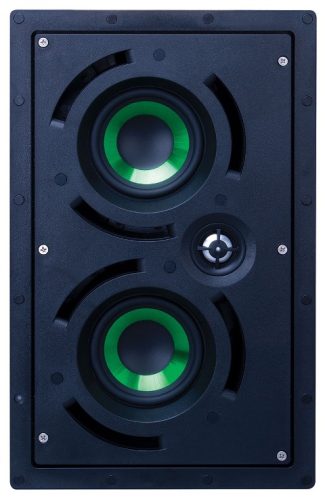

Speaker Type – In-Wall 2-Way
Woofer: Dual 4″ Carbon Fiber 1″ Titanium Tweeter
Impedance: 6 Ω
Frequency Response: 86 Hz — 25 kHz
Sensitivity: 92 dB
Depth: 3.9″ 100mm
Speaker Weight: 8.55 lbs (3.87 kg)
Dimensions: 15.03″ H x 9.37″ W x 3.8″ D (382 mm x 238 mm x 97 mm)
Cutout: 13.98″ H x 8.33” W (355 mm x 211.5 mm)
Grille Size: 9.35″ H x 15.02″ W (237.5 mm x 381.5 mm)
Power Handling: 5 —120 W

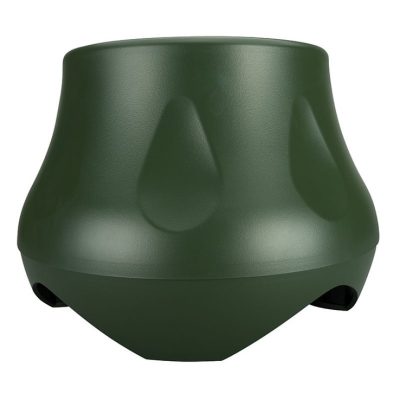

Woofer – 10” polypropylene cone
RMS Power – 150W
Frequency Response – 40Hz-300Hz
Nominal Impedance – 4 Ohm
Sensitivity – 86 dB
IP Level – IP65
Dimensions: 12.2” x 16.5” x 16.5” (310mm x 420mm x 420mm)

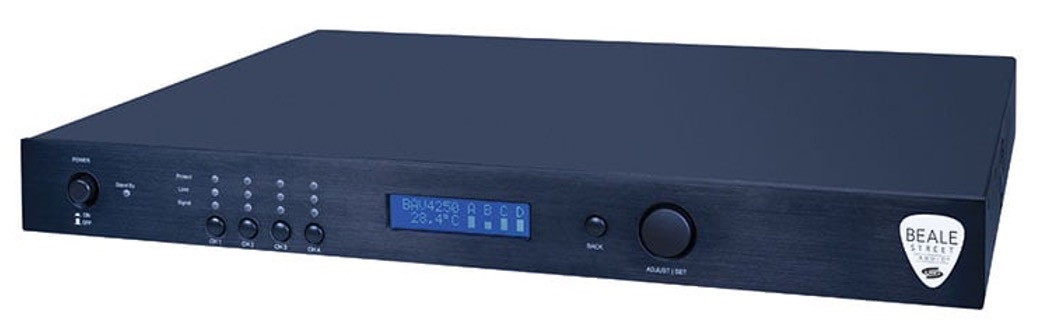

Amplifier Channel: 4 Channel
Frequency Response: 20Hz to 20KHz +/-0.3dB @8 Ohms
Sensitivity: Selectable, 0dB or +6dB
THD+N: <1% @1KHz/rated power
Signal-to-Noise Ratio 90dB @1KHz/rated power into 70V mode
Crosstalk >70dB @1KHz
Dimensions 16.93” W x 2.17” H x 12.6” D
Woofer: 4” Polypropylene
Tweeter: 0.75” Silk Dome
RMS Power: 20W
Nominal Impedance: 8Ω
Sensitivity: 83db
Transformer:70V: 8 Ohm, 1.25W, 2.5W, 5W, 10W
Transformer:100V: 8 Ohm, 2.5W, 5W, 10W, 20W
Frequency Response(±3dB): 120Hz-20kHz
Indoor/Outdoor Rating: IP66
Product Dimensions: 138mm x 190mm (5.4” x 7.5”)
> Sensitivity : 89 dB/w 2.8v (1m)
> Nominal Impedance : 8 Ohms
> Power Handling : 100 Watts
> Dimensions : 4″ Sphere
> Weight : 795g
> Cone Material : Mical Polypropylene Compound
> Enclosure Material : Mild Steel
> Warranty: 5 Years Parts and Labour
> Frequency Response: On wall : 76Hz to 20Khz / On floor stand: 95Hz to 20Khz
> Sensitivity : 88 dB/w
> Nominal Impedance : 8 Ohms
> Power Handling : Full range : 50 Watts / Crossover : 100 Watts
> Height on Floor Stand : 37″
> Driver : 3″ full range
> Dimensions : 5″ Sphere
> Droplet A’Diva : Weight – 1795g
> Droplet A’Diva SE : Weight – 1485g
> Droplet Micro : Weight – 1175g
> Droplet Micro SE : Weight – 1155g
All other specifications as per individual units:
> A’Diva
> A’Diva SE
> Micro
> Micro SE
> Frequency Response : 68Hz to 20hz +/- 3db
> Sensitivity : 90 dB/1 Watt/1 meter
> Nominal Impedance : 8 Ohms
> Power Handling : 150 Watts RMS
> Finishes : Brushed stainless steel spheres with a black frame.
> Tweeter : Patented CDT3
> Woofers : Two 4″
> Crossovers : None
> In-room frequency response : 18Hz – 180Hz +/- 3db
> Digital power amp : 300 Watts RMS, 600 Watts max.
> Phase : 0/180 switch
> Low pass : 50 to 180Hz, continuously variable with LFE by-pass switch
> High pass : 100Hz fixed, 1st order on high-level output
> Bass EQ : 0, +3dB, +6dB 25 Hz center frequency
> Power : Auto/On/Off: toggle Switch
> Dimensions : 275mm (W) x 305mm (H) x 345mm (D)
> Frequency Response : 32Hz – 220Hz +/- 3db
> Digital Power Amp : 150 Watts
> Woofer : 8″ woofer with PP cone and NBR surround
> Phase : 0 – 180º continuously variable
> Active low pass filter : 50 to 180Hz, continuously variable
> Power : Auto/On/Off: toggle switch
> Dimensions : 475mm (W) x 305mm (H) x 180mm (D)
> Weight : 10.5kg
> Enclosure Material : MDF (Medium Density Fibreboard)
